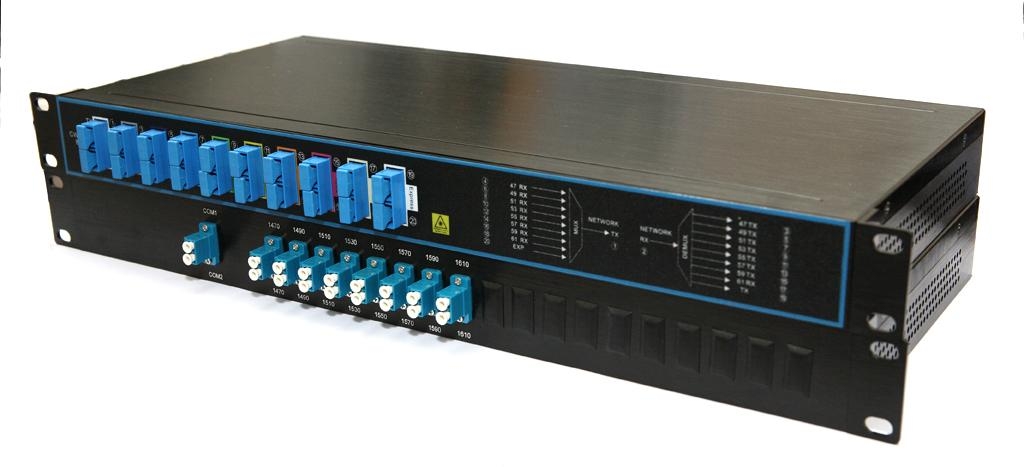

Features
l Low Insertion Loss
l Wide pass band
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path
l Access Network
Applications
l Line Monitoring
l WDM Network
l Telecommunication
l Cellular Application
l Fiber Optical amplifier
l Acess Network
Performance Specifications
|
Parameter
|
4 Channel
|
8 Channel
|
16 Channel
|
|
Mux
|
Demux
|
Mux
|
Demux
|
Mux
|
Demux
|
|
Channel Wavelength (nm)
|
1270~1610
|
|
Center wavelength Accuracy (nm)
|
±0.5
|
|
Channel Spacing (nm)
|
20
|
|
Channel Passband (@-0.5dB bandwidth (nm)
|
>13
|
|
Insertion Loss (dB)
|
≤1.6
|
≤2.5
|
≤4.5
|
|
Channel Uniformity (dB)
|
≤0.6
|
≤1.0
|
≤1.5
|
|
Channel Ripple (dB)
|
0.3
|
|
Isolation (dB)
|
Adjacent
|
N/A
|
>30
|
N/A
|
>30
|
N/A
|
>30
|
|
Non-adjacent
|
N/A
|
>40
|
N/A
|
>40
|
N/A
|
>40
|
|
Inertion Loss Temperature Sensitivity (dB/℃)
|
<0.005
|
|
Wavelength Temperature Shifting (nm/℃)
|
<0.002
|
|
Polarization Dependent Loss (dB)
|
<0.1
|
|
Polarization Mode Dispersion
|
<0.1
|
|
Directivity (dB)
|
>50
|
|
Return Loss （dB）
|
>45
|
|
Maximum Power Handling (mW)
|
300
|
|
Opterating Temperature (℃)
|
-5~+75
|
|
Storage Temperature (℃)
|
-40~85
|
|
Package dimension (mm)
|
L100 x W80 x H10
|
L142 x W102 x H14.5
|
Specification may change without notice.
Above specification are for device without connector.
Ordering Information
|
CWDM
|
X
|
XX
|
X
|
XX
|
X
|
X
|
XX
|
|
|
Channel Spacing
|
Number of Channels
|
Configuration
|
1st Channel
|
Fiber Type
|
Fiber Length
|
In/Out Connector
|
|
C=CWDM Grid
|
04=4 Channel
08=8 Channel
16=16 Channel
18=18 Channel
N=N Channel
|
M=Mux
D=Demux
O=OADM
|
27=1270nm
……
47=1470nm
49=1490nm
……
61=1610nm
SS=special
|
1=Bare fiber
2=900um loose
tube
3=2mm Cable
4=3mm Cable
|
1=1m
2=2m
S=Specify
|
0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC
S=Specify
|
